Double Girder Explosion Proof Gantry Lift Electric Gantry Type Crane For Construction Site

Electric Double Girder Explosion Proof Gantry Crane For Construction Site

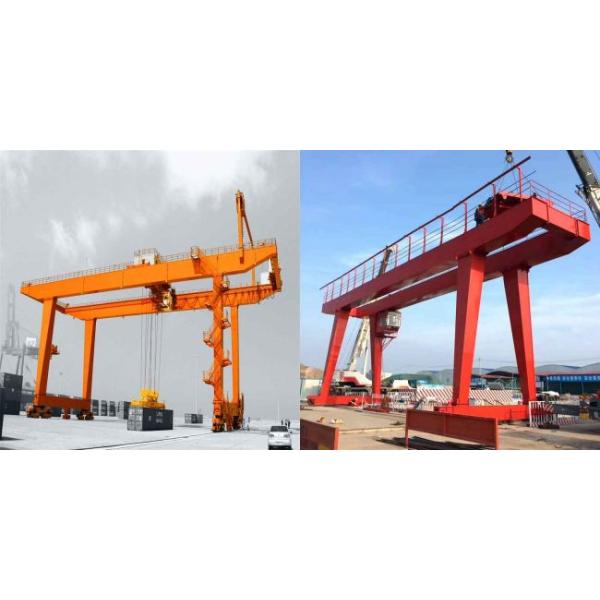

Gantry Crane is a bridge type crane whose bridge frame is supported on the ground track by the outriggers on both sides. Structurally, it consists of a mast, a cart running mechanism, a lifting trolley and electrical parts. Some gantry cranes only have outriggers on one side, and the other side is supported to run on the factory building or trestle, called semi-gantry cranes. The gantry crane's upper bridge frame (including the main girder and end girder), outriggers, and lower beams are composed of parts. In order to expand the working range of the crane, the main girder can extend out of the outriggers to one or both sides to form a cantilever. A trolley with a jib can also be used to expand the working range of the crane through the pitch and rotation of the jib.

The double main girder gantry crane has strong bearing capacity, large span, good overall stability and many varieties, but its own quality is larger than that of the single main girder gantry crane with the same lifting capacity, and the cost is also higher. According to the structure of the main girder, it can be divided into two forms: box girder and truss. Generally, a box-shaped structure is used.

Most of the main girder structure is a box type girder: it is very common. And the steel plate is welded into a box structure, which has the characteristics of high safety and high rigidity. It is generally used for large-tonnage and super-large-tonnage gantry cranes. As shown in the picture on the right, MGhz1200, with a lifting capacity of 1,200 tons, is the largest gantry crane in China, and the main girder adopts a box girder structure. The box girder also has the disadvantages of high cost, heavy weight, and poor wind resistance.

Specification

Company Introduction




FAQ

1. What after-sale service do you provide?
We have professional sales team and technical team for all customer. We can serve 24 hours a day for you.
2. What payment methods do you support?
We have many kinds of payment for your reference ,such as Western Union, Paypal, L/C, T/T and so on.
3. How to delivery the goods?
We often shipment goods by sea,which is cheaper than by air. It depends on your specific requirement.
4. What is your warranty service about machine?
Our machine has one year warranty time, and our engineering team available for oversea service with crane installation, inspection and commissioning.
5. What is your trade terms?
We have EXW, FOB, CIF, CFR for you to choose, and we can change according to your requirements.

Double Girder Explosion Proof Gantry Lift

Electric Gantry Type Crane

Gantry Type Crane For Construction Site

Double Girder Explosion Proof Gantry Lift Electric Gantry Type Crane For Construction Site Images
